Mechanical Reinforcement
XCorr® 200
XCorr® 200
Composite Repair Kit
A filled, novolac epoxy resin paired with a non-crimp, high-strength quadraxial fiberglass
weave to deliver superior mechanical reinforcement and chemical resistance — a PCC-2
compliant composite that returns compromised pipe to service without costly replacement.

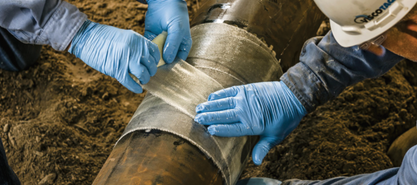

When pipe strength has been compromised due to corrosion or mechanical damage, XCorr® 200 Composite Repair Kits provide a path to return to service without costly pipe replacement. The high-performance epoxy resin and advanced-weave fiberglass reinforcement create a PCC-2 compliant composite — easy to install, yet delivering superior mechanical strength and high chemical resistance.
Key Attributes
- Novolac epoxy resin yields exceptional chemical resistance
- 100% solids, no VOCs
- 3:1 mixing ratio (pre-measured)
- Cartridge dispensing minimizes waste and ensures complete mixing
- Quadraxial fiberglass weave provides multidirectional mechanical reinforcement
- Outstanding tensile, compressive, and adhesive bond strength
- PCC-2 repair calculation package available upon request
Handling & Application
- Mixing Ratio
- 3:1 (pre-measured)
- Tape Width
- 12.5"
- Resin Cartridges
- 400 mL or 1.0 L
- Shelf Life (A / B)
- 12 mo @ 75°F
- Storage Temp
- 32–100°F
- Application Temp
- 50–140°F (10–60°C)
- Surface Prep
- SSPC-SP10 / SP6
Kits include static mixers, spreaders and gloves. Two-part dispensing guns sold separately. Surfaces must be cleaned of all oil and debris and dried; bright-metal finish desired.
24,300 psi
Tensile Strength
450°F
Max Heat (dry)
24 hr
Full Strength
Resin (at 75°F / 24°C)
- Pot Life
- 35 minutes
- Dry to Touch
- 6 hours
- Full Mech. Strength
- 24 hours
- Full Chem. Resistance
- 24 hours
Composite Properties
- Layer Thickness / ply
- 0.06 in
- Tensile Strength
- 24,300 psi
- Tensile Modulus
- 2.18×10⁶ psi
- Lap Shear Adhesion
- 1,480 psi
- Compressive Strength
- 27,000 psi
- Flexural Yield
- 9,600 psi
- Shore D Hardness
- 84
- Heat Resistance
- -20 to 450°F dry
Per ASTM D 3039 / D 3165 / D 685 / D 790 / D 785. Consult chemical compatibility to gauge wet-service performance.
